Mining Screen, also named stone crusher screen Vibrating Sieving Screen Mesh, Crusher Sieving Screen Mesh. Mining Screen Mesh is usually made of 65MN wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it obtain accurate screening results and services at best price, so that 65MN crimped wire mesh is a perfect choice stone crusher screen and mining screens.
Material Characteristics
65mn Crimped Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Comparing with carbon steel,45#,50#,55#,60#,70#,72A material grade, 65mn Material have the highest Manganese content and high carbon, which let is have High Wear resistance and Tensile strength. Stainless steel is also fine material, but price is too expensive for batch quantity uses. So that 65mn crimped wire mesh is a great screens for mining, quarrying, vibrating industry.
65MN Material Chemical Composition (%) |
||||||
Material |
C |
Si |
Mn |
Cr |
Ni |
Cu |
65Mn steel |
0.62-0.70 |
0.17-0.37 |
0.90-1.20 |
≤0.25 |
≤0.30 |
≤0.25 |
0.66 |
0.25 |
0.98 |
0.04 |
0.01 |
0.03 |
Weaving types and Edge types

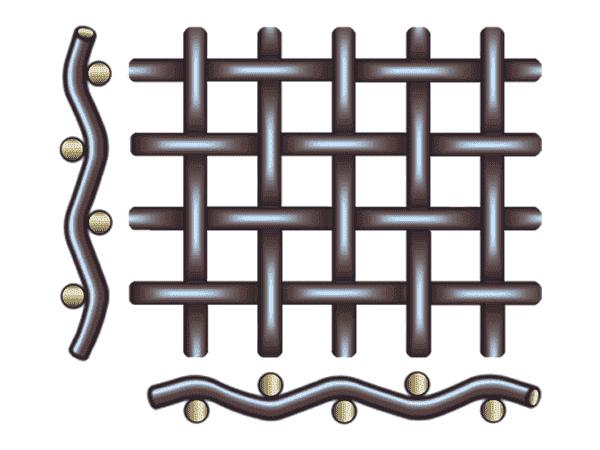

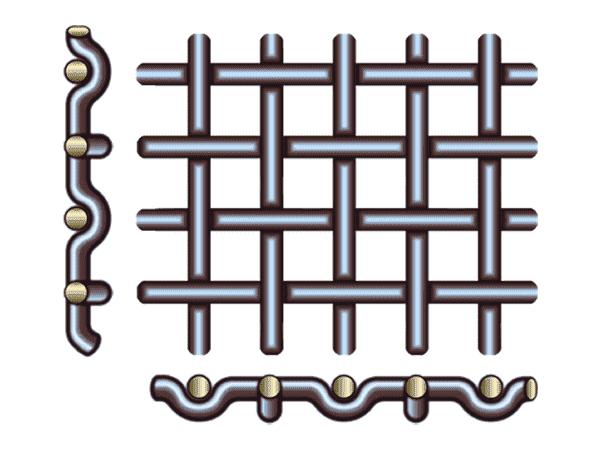

Double Crimp |
Flat Top |

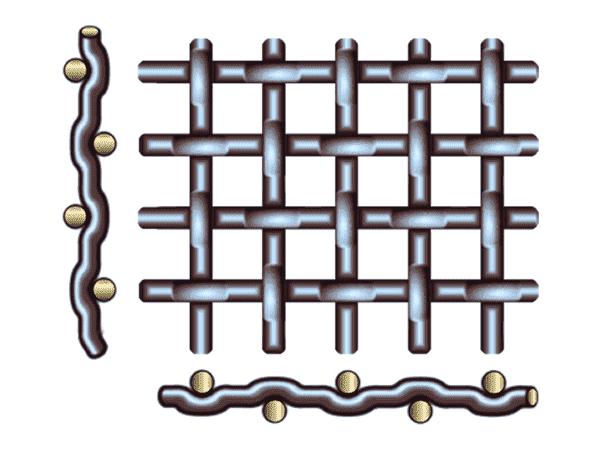

Lock Crimp |

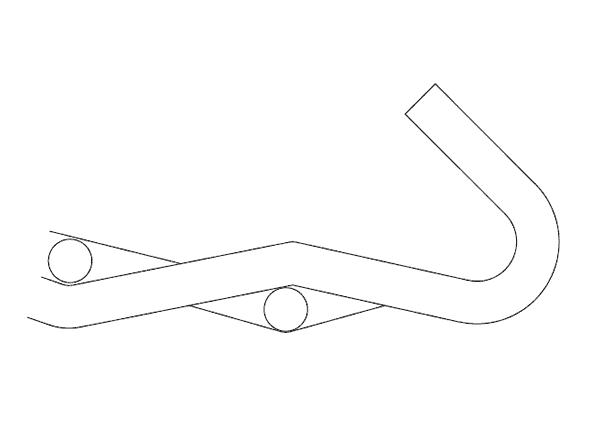

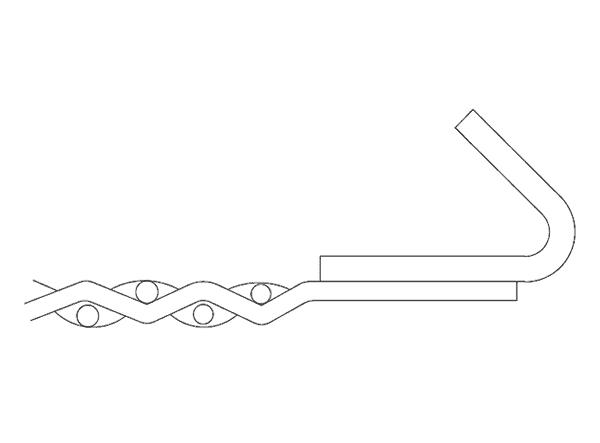

Plain hooked |

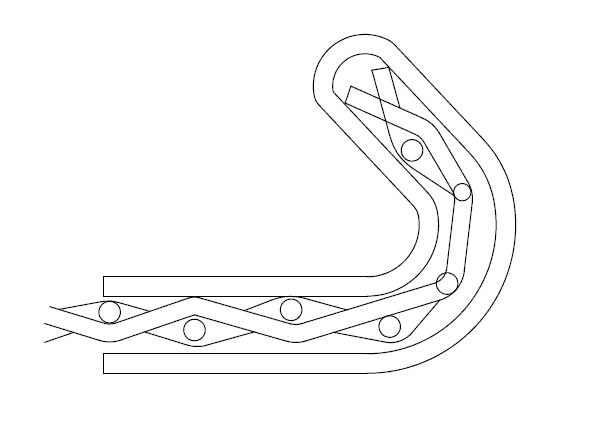

Reinforced shroud |

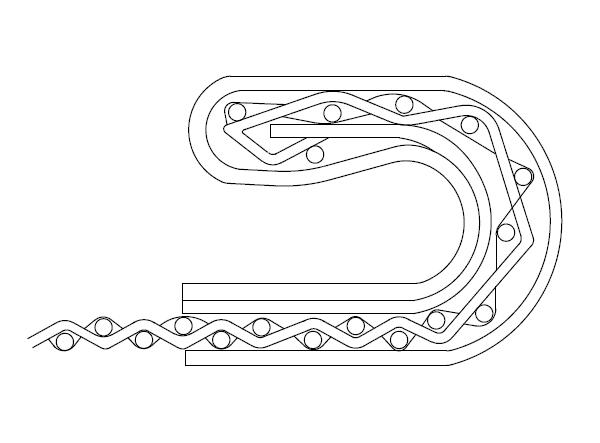

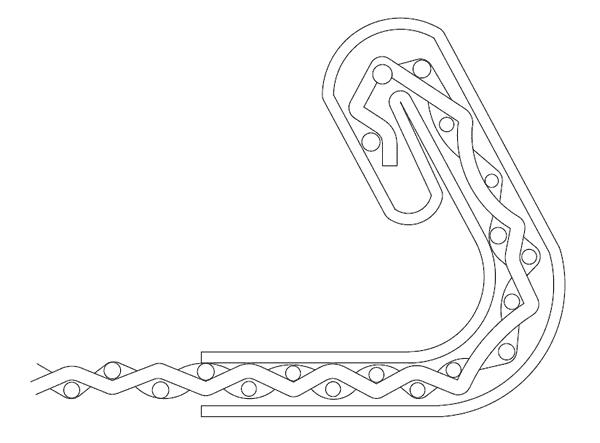

Double folded reinforced shroud |
End tension reinforced shroud |
Inside reinforced formed |
Welded bent plate |
Specification Data
SQUARE HOLES Crimped Wire Mesh, all avaible for 65MN |
||||||||
Item# |
Mesh Aperture |
Wire Dia. |
Item# |
Mesh Aperture |
Wire Dia. |
Item# |
Mesh Aperture |
Wire Dia. |
1 |
1.0mm |
0.6mm 0.7mm 0.8mm |
16 |
12.5mm |
4mm 5mm 6mm |
31 |
28.0mm |
6mm,7mm,8mm |
2 |
1.5mm |
0.9mm 0.8mm 1mm |
17 |
13.0mm |
4mm 5mm 6mm |
31 |
30.0mm |
6mm 7mm 8mm |
3 |
1.6mm |
1.2mm 1.3mm 1.4mm |
18 |
14.0mm |
4mm 5mm 7mm |
32 |
32.0mm |
6mm 7mm 8mm |
4 |
2.0mm |
1.5mm 1.6mm 1.8mm |
19 |
15.0mm |
4mm 5mm 7mm |
33 |
35.0mm |
6mm 7mm 8mm |
5 |
3.0mm |
1.8mm 1.9mm 2mm |
20 |
16.0mm |
5mm 6mm 7mm |
34 |
38.0mm |
6mm 7mm 8mm |
6 |
4.0mm |
2mm 2.5mm 3mm |
21 |
17.0mm |
5mm 6mm 7mm |
35 |
40.0mm |
6mm 7mm 8mm |
7 |
5.0mm |
2mm 2.5mm 3mm |
22 |
18.0mm |
5mm 7mm 8mm |
36 |
45.0mm |
7mm 9mm 10mm |
8 |
6.0mm |
2.5mm 3mm 4mm |
23 |
19.0mm |
5mm 7mm 8mm |
37 |
50.0mm |
8mm 9mm 10mm |
9 |
7.0mm |
2.5mm 3mm 4mm |
24 |
20.0mm |
5mm 7mm 8mm |
38 |
55.0mm |
8mm 9mm 10mm |
10 |
8.0mm |
3mm 4mm 5mm |
25 |
21.0mm |
6mm 7mm 8mm |
39 |
60.0mm |
10mm 11.2mm 12.7mm |
11 |
9.0mm |
3mm 4mm 5mm |
26 |
22.0mm |
6mm 7mm 8mm |
40 |
65.0mm |
10mm 11.2mm 12.7mm |
12 |
9.5mm |
3mm 4mm 5mm |
27 |
23.0mm |
6mm 7mm 8mm |
41 |
75.0mm |
10mm 11.2mm 12.7mm |
13 |
10.0mm |
3mm 4mm 5mm |
28 |
24.0mm |
6mm 7mm 8mm |
42 |
80.0mm |
10mm 11.2mm 12.7mm |
14 |
11.0mm |
3mm 4mm 5mm |
29 |
25.0mm |
6mm 7mm 8mm |
43 |
90.0mm |
10mm 11.2mm 12.7mm |
15 |
12.0mm |
4mm 5mm 6mm |
30 |
26.0mm |
6mm 7mm 8mm |
44 |
100.0mm |
10mm 11.2mm 12.7mm |
Products Photos
QIUSUO has enough experience and ability to make widely specifications, good quality and quick delivery time.

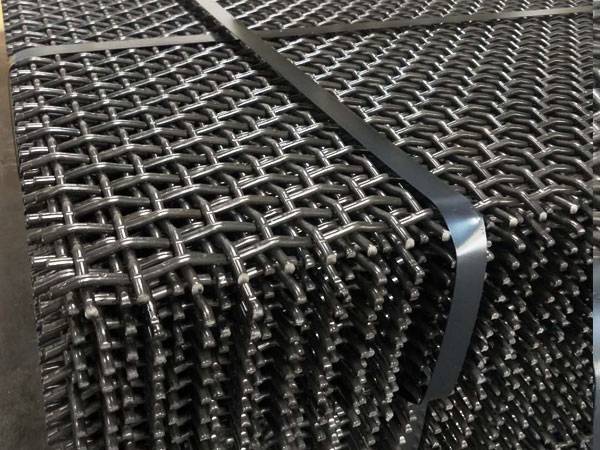

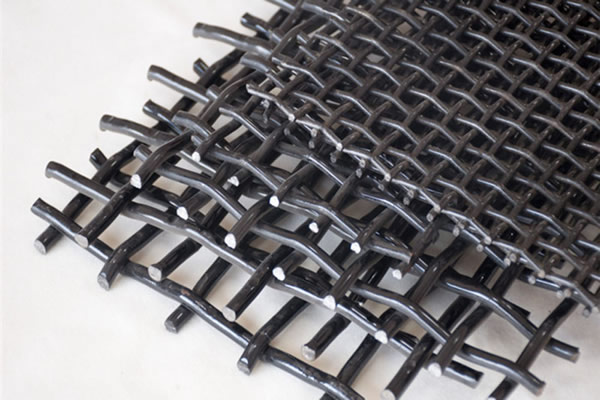

Double Crimped 65MN Mining Screen Anti-Rust Oil Spaying |

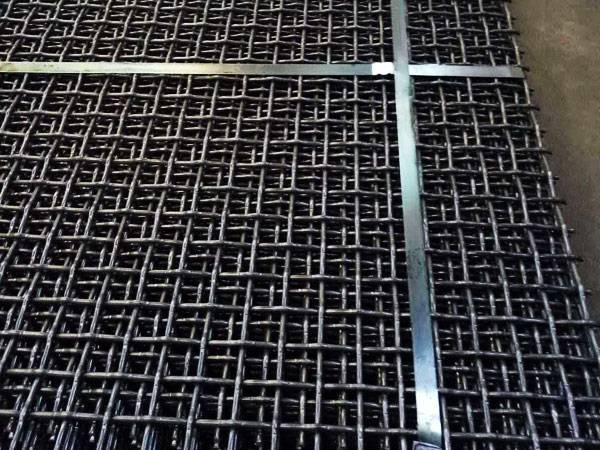

Lock Crimped 65MN Mining Screen Anti-Rust Oil Spaying |

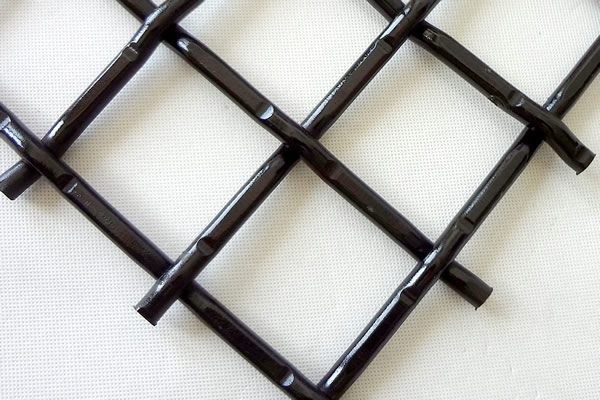

4mm Mesh Aperture 3mm Wire Diameter 65MN Mining Screen
38mm Mesh Aperture 6mm Wire Diameter 65MN Mining Screen
2mm mesh 1mm Wire Red 65MN Mining Screen
12mm Mehs 5mm Wire Red 65MN Mining Screen
65MN Crimped Wire Mesh for Vibrating

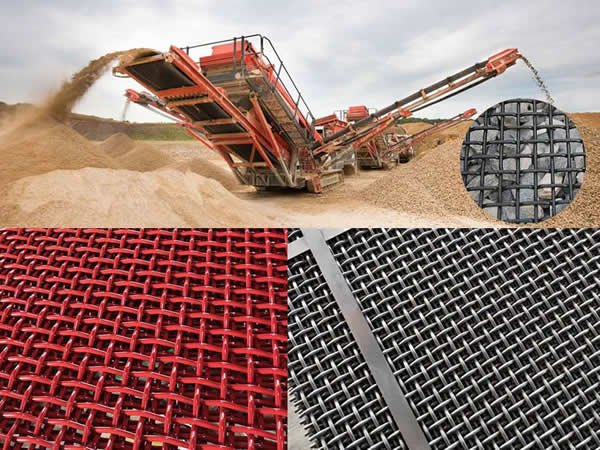

65Mn Quarry Rock Screen Mesh
Benefits of 65MN Mining Screen
Applications
65MN crimped wire mesh is usually ideal for vibrating screens and many other applications where sizing becomes significant.
There are many great usages such as:
65Mn-steel-crimped-wire-mesh-01 |
65Mn-steel-crimped-wire-mesh-02 |
65Mn-steel-crimped-wire-mesh-03 |
65Mn-steel-crimped-wire-mesh-04 |
65Mn-steel-crimped-wire-mesh-05 |
|
