Knitted Wire Mesh

Knitted wire mesh also named filter wire mesh.

We manufacture types are: Stainless Steel Knitted Wire Mesh, Copper Knitted Wire Mesh, Brass Knitted Wire Mesh, Nickel Knitted Wire Mesh, Titanium Knitted Wire Mesh, Monel Knitted Wire Mesh, Inconel Knitted Wire Mesh, Galvanized Knitted Wire Mesh.

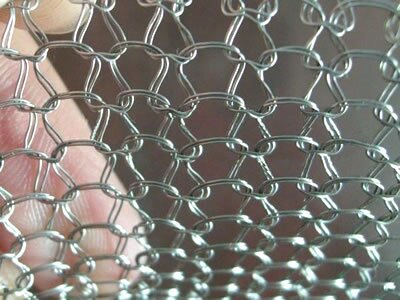

Single Strand knitted Wire Mesh Double Strands Knitted Wire Mesh

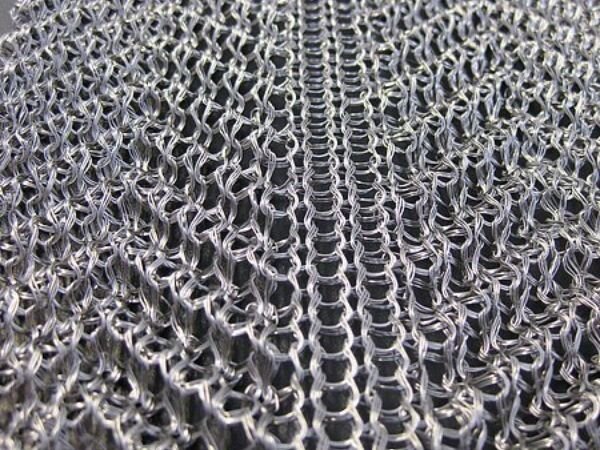

High Performance Multi-Strand Knitted Wire Mesh


Process: Crochet weaving.

Wire diameter: from .0035” to .0200” the wires can be round or flat.

Mesh size: 2x3mm, 4x5mm,12x6mm or as the customers’ request.

Width: from 2 inches to 43 inches

Surface: can be flat or corrugated.

General Use: It can used as filter mesh for gas and liquid in filtering and deleting the particle mixture in foam, liquid and air, by way of distillating, absorbing, evaporating and filtering process. So it used in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection filed.

AnPing Huan Ya Wire Mesh Products Co.,ltd provides Top Quality Various Knitted Wire Mesh, and Excellent Service, Exceptionally Competitive Prices, Free Samples Provides for Review and Approve.

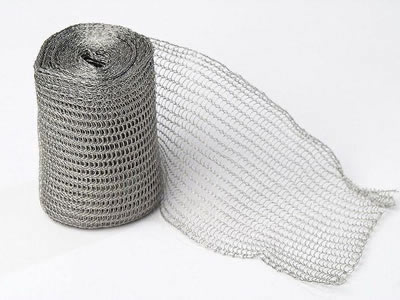

Stainless steel knitted mesh refers to knitted mesh made of stainless steel wire. It is a nonwoven wire mesh or cloth product. The stainless steel knitted mesh is the most widely used type among all material knitted meshes.

Stainless steel knitted mesh can be made of mono-filament or multi-filament. Mono-filament knitted mesh is the simplest type, which can be used in the common applications and the multi-filament knitted mesh has higher strength, which can be used in the heavy duty applications.

Specification of flat wire stainless steel knitted mesh
Items Wire Diameter (mm) Mesh Opening/ Loop Size (mm) Number of Needles Maximum Width (mm) Minimum Width (mm)
SSK-36 0.1 × 0.3 2 × 4 36 60 55
SSK-34 0.1 × 0.3 4.5 × 4 2.5 × 4 34 150 100
SSK-40 0.1 × 0.4 4.5 × 5.5 2.5 × 5.5 40 150 120
SSK-56 0.1 × 0.4 4 × 3.5 2.5 × 3.5 56 205 180
SSK-65 0.1 × 0.4 4 × 4 3 × 4 65 260 240
SSK-94 0.2 × 0.4 5.2 × 3.5 3 × 3.5 94 420 380
SSK-102 0.2 × 0.4 7.5 × 5 5 × 5 102 565 490
SSK-128 0.2 × 0.5 5 × 4 2.5 × 4 128 560 470
Note: Knitted mesh length can be customized according to customers' requirements.

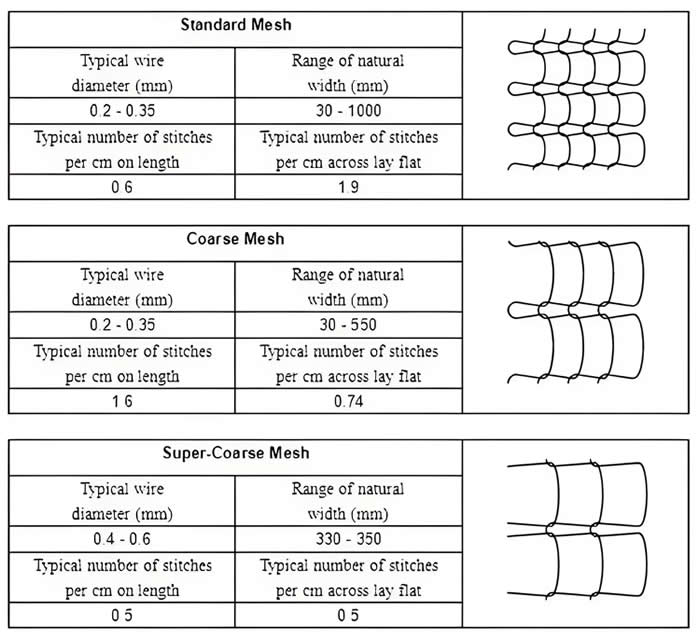

Specification of round wire stainless steel knitted mesh
  Wire Diameter (mm) Width (mm) Number of Stitches Per cm on Length Number of Stitches Per cm Across Lay Flat
Fine Mesh 0.08 – 0.18 6 - 300 3.5 4.4
Medium-fine Mesh 0.16 40 - 600 2.4 3.5
Standard Mesh 0.18 - 0.35 30 - 1000 1.6 1.9
Coarse Mesh 0.25 - 0.40 30 - 1000 1.6 0.74
Super Coarse Mesh 0.4 - 0.5 100 - 350 0.5 0.5

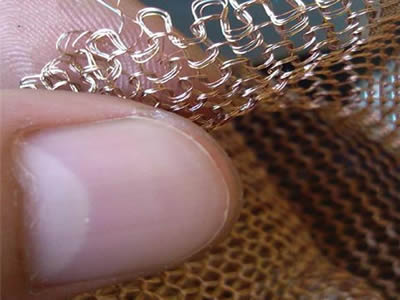

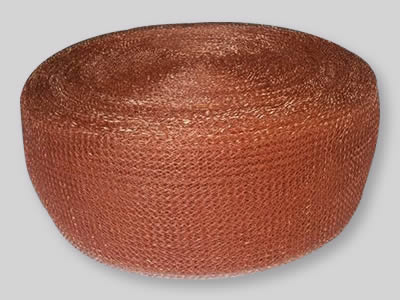

Copper knitted mesh is available for two main materials: one is pure copper, which contains 99% copper and the other is tinned copper, which contains 6% - 8% tin.

The materials are knitted into knitted mesh. The knitted mesh can be mono-filament and multi-filament. The mono-filament is the simplest structure of knitted mesh and the multi-filament knitted mesh has higher strength and can be used in more applications.

Advantages of copper knitted mesh

   • High strength.
   • Firm structure.
   • Will not scratch or mar.
   • Never rust.
   • Non-flammable.
   • Resistant to disintegration.
   • Reusable.
   • Long service life.
