Stainless Steel Wire Mesh   Stainless Steel Wire Cloth

Stainless Steel Wire Mesh Styles have: Square plain Mesh, Square Twilled Mesh, Market Grade Square mesh, Bolting Cloth Mesh, Mill Grade Square Mesh, Plain Dutch Mesh, Reverse Plain Dutch Mesh, Twill Dutch Mesh, Reverse Dutch Twilled Mesh, Broad Mesh, Mesh by the Micron.

AnPing Huan Ya Wire Mesh Products Co.,ltd provides Top Quality Stainless Steel Wire Mesh, Stainless Steel Wire Cloth, Filter Wire Cloth, Filter Wire Mesh, Separation Wire Mesh, Filtration Wire Cloth, and Excellent Service, Exceptionally Competitive Prices, Free Samples Provides for Review and Approve.




Five Heddle Weave Drawing Reverse Dutch Weave Wire Mesh


An Ping Huan Ya Wire Mesh Products Co.,ltd . We are one of the top manufacturers and supplier of Stainless Steel Wire Mesh,Stainless Steel Wire Cloth,filter wire mesh,Woven Wire Mesh Products, Started from the year 2000, We have about 25 years of experiences in weaving Stainless Steel Wire Mesh,Stainless Steel Wire Cloth and Plain Steel Wire Mesh,Nickel Wire Mesh,Brass Wire Mesh,Copper Wire Mesh and  special alloy wire mesh products.

We have first-class production equipment, strong R&D capability, rich experiences and full inspection means to provide full range of wire mesh and wire products for worldwide customers.

Our products service to various industries which include Aerospace, Aircraft, Automotive, Agriculture, Chemical, Electronics, Food, Petroleum, Textile, Buliding products etc.

All products are manufactured in conformity with ISO standards.

Our stainless steel grade are: SS304, SS304L, SS316, SS316L, SS310, SS314, SS317, SS321, SS347, SS410, SS430, SS904L, S32205 2205 Duplex, S32750 2507 Super Duplex

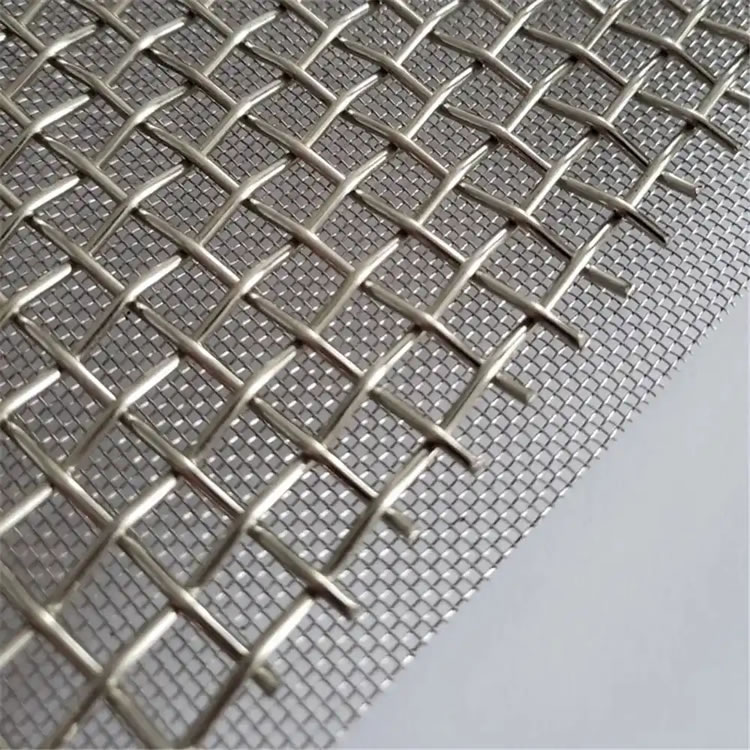

Stainless Steel Wire Mesh Crimp Styles

  • Lock crimp: Lock crimp is comprised of pre-crimped wire featuring the formation of knuckles or bumps over intersecting sets of wires. This locks the mesh in place to create an extremely rigid product.
  • Double crimp: Double crimp wire mesh cloth exhibits a pattern of warp wires passing over and underfill wires.

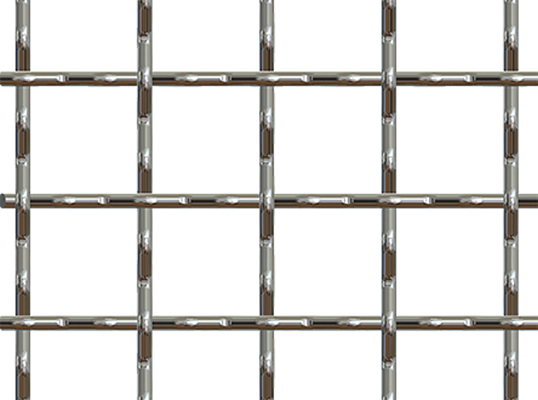

  • Intercrimp: Commonly used for screens and architectural applications, intercrimp woven wire mesh provides superior strength and stability, while offering a rigid mesh solution.
  • Flat top: As the name implies, the flat top crimp style features a smooth top plane that facilitates the flow of materials.

Common Applications

The remarkable strength and versatility of woven wire mesh products make them an excellent choice for numerous applications, including:

  • Sifting and sizing
  • Architectural applications when aesthetics are important
  • Infill panels that can be used for pedestrian partitions
  • Filtration and separation
  • Glare control
  • RFI and EMI shielding
  • Ventilation fan screens
  • Handrails and safety guards
  • Pest control and livestock cages
  • Process screens and centrifuge screens
  • Air and water filters
  • Dewatering, solids/liquid control
  • Waste treatment
  • Filters and strainers for air, oil, fuel and hydraulic systems
  • Fuel cells and mud screens
  • Separator screens and cathode screens
  • Catalyst support grids made from bar grating with wire mesh overlay



Stainless Steel Square Wire Mesh Specifications:

Mesh/Inch

Wire Diameter

Aperture

Open Area

Weight(LB) /100 Square Foot

Inch

MM

Inch

MM

1x1

.080

2.03

.920

23.37

84.6

41.1

2X2

.063

1.60

.437

11.10

76.4

51.2

3X3

.054

1.37

.279

7.09

70.1

56.7

4X4

.063

1.60

.187

4.75

56.0

104.8

4X4

.047

1.19

.203

5.16

65.9

57.6

5X5

.041

1.04

.159

4.04

63.2

54.9

6X6

.035

.89

.132

3.35

62.7

48.1

8X8

.028

.71

.097

2.46

60.2

41.1

10X10

.025

.64

.075

1.91

56.3

41.2

10X10

.020

.51

.080

2.03

64.0

26.1

12X12

.023

.584

.060

1.52

51.8

42.2

12X12

.020

.508

.063

1.60

57.2

31.6

14X14

.023

.584

.048

1.22

45.2

49.8

14X14

.020

.508

.051

1.30

51.0

37.2

16X16

.018

.457

.0445

1.13

50.7

34.5

18X18

.017

.432

.0386

.98

48.3

34.8

20X20

.020

.508

.0300

.76

36.0

55.2

20X20

.016

.406

.0340

.86

46.2

34.4

24X24

.014

.356

.0277

.70

44.2

31.8

30X30

.013

.330

.0203

.52

37.1

34.8

30X30

.012

.305

.0213

.54

40.8

29.4

30X30

.009

.229

.0243

.62

53.1

16.1

35X35

.011

.279

.0176

.45

37.9

29.0

40X40

.010

.254

.0150

.38

36.0

27.6

50X50

.009

.229

.0110

.28

30.3

28.4

50X50

.008

.203

.0120

.31

36.0

22.1

60X60

.0075

.191

.0092

.23

30.5

23.7

60X60

.007

.178

.0097

.25

33.9

20.4

70X70

.0065

.165

.0078

.20

29.8

20.8

80X80

.0065

.165

.0060

.15

23.0

23.2

80X80

.0055

.140

.0070

.18

31.4

16.9

90X90

.005

.127

.0061

.16

30.1

15.8

100X100

.0045

.114

.0055

.14

30.3

14.2

100X100

.004

.102

.0060

.15

36.0

11.0

100X100

.0035

.089

.0065

.17

42.3

8.3

110X110

.0040

.1016

.0051

.1295

30.7

12.4

120X120

.0037

.0940

.0064

.1168

30.7

11.6

150X150

.0026

.0660

.0041

.1041

37.4

7.1

160X160

.0025

.0635

.0038

.0965

36.4

5.94

180X180

.0023

.0584

.0033

.0838

34.7

6.7

200X200

.0021

.0533

.0029

.0737

33.6

6.2

250X250

.0016

.0406

.0024

.0610

36.0

4.4

270X270

.0016

.0406

.0021

.0533

32.2

4.7

300X300

.0051

.0381

.0018

.0457

29.7

3.04

325X325

.0014

.0356

.0017

.0432

30.0

4.40

400X400

.0010

.0254

.0015

.370

36.0

3.3

500X500

.0010

.0254

.0010

.0254

25.0

3.8

635X635

.0008

.0203

.0008

.0203

25.0

2.63

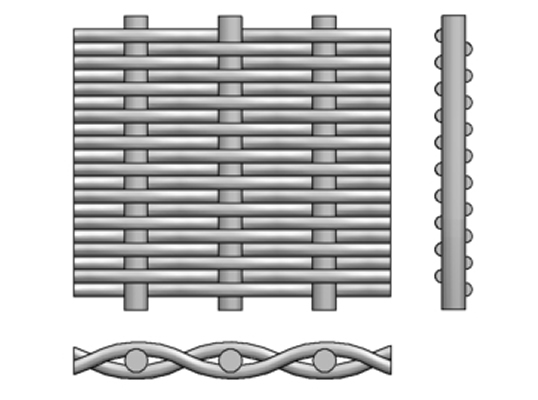

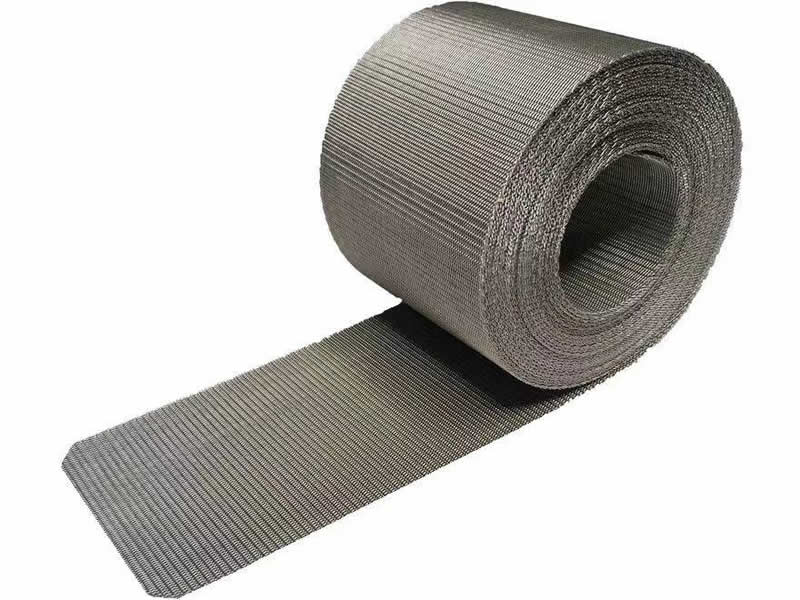

Stainless steel reverse dutch weave wire cloth

code
Wire diameter(um) Micron Retention(um) Prosity Weight Cloth
Mesh Theor (kg/m2) Thickness

Warp Weft Nominal Absolute (%)
(mm)
RFD400
84×14 - - - 450-530 62 3.5 1.15
RFD125
260×40 - - 125 112-125 54 2.25 0.62
RFD90 170×40 - - 90 106-118 54 2.1 0.57
RFD85 175×37 - - 85 100-106 54 2.1 0.57
RFD80 130×30-35 200 380 80 95-105 57 2.7-3.10 .77-.80
RFD60 175×40-50 150 300 60 65-72 55 2.1-2.40 .57-.60
RFD40 280×60-70 90 200 40 54-60 56 1.34-1.55 .38-.40
RFD25 600×100-105 42 140 25 34-38 57 .75-.80 .22-.23
RFD20 630×125-130 42 125 17 22-26 53 .75-.85 .20-.22
RFD15 720×140-150 35 110 15 16-20 52 .65-.70 .15-.18

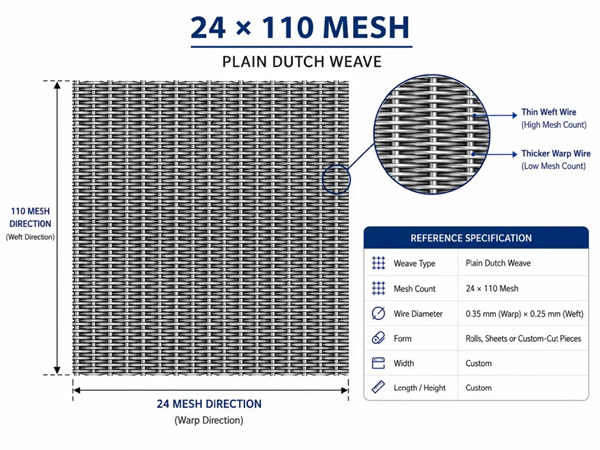

Stainless steel plain dutch weave wire mesh

Mesh count per inch Wire diameter inches Absolute filter rating microns Nominal filter rating microns
8×85 .014×.0126 300-320 310
12×64 .024×.0165 260-280 250
14×88 .020×.013 255-275 250
20×150 .0098×.007 155-185 120
24×110 .015×.010 115-128 110
30×150 .009×.007 90-105 90
40×200 .007×.0055 70-80 70
50×250 .0055×.0045 52-57 55
80×400 .0049×.0028 40-45 40

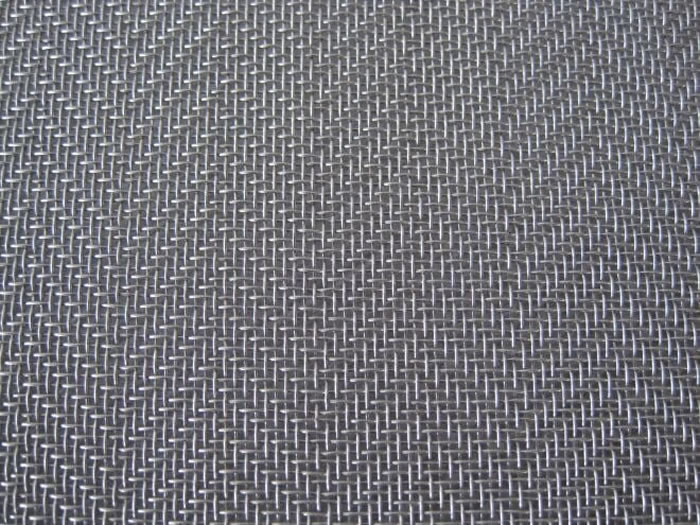

Stainless steel twill dutch weave wire mesh

Mesh count per inch Wire diameter inches Absolute filter rating microns Nominal filter rating microns
20×250 .0098×.0079 100-118 100
30×360 .0098×.0060 95-105 90
40×560 .0070×.0040 75-83 65
80×700 .0040×.0030 35-38 35
200×600 .0024×.0018 28-32 30
165×800 .0028×.0020 25-29 25
165×1400 .0028×.0016 16-18 15
200×1400 .0028×.0016 12-14 10
250×1400 .0022×.0016 11-13 9
325×2300 .0015×.0010 8-9 5
500×3600 .0010x.0006 2-3 1



SS bolt mesh

 Meshes per Linear Inch Width of Opening Diameter of Wire Open Area per Cent Weight 100 Sp.ft.
Inches mm Inches mm
16×16 .0535 1.36 .009 .229 73.3 8.38
18×18 .0466 1.18 .009 .229 70.2 9.48
24×24 .0342 .869 .0075 .191 67.2 8.75
28×28 .0282 .716 .0075 .191 62.4 10.29
30×30 .0268 .681 .0065 .165 64.8 8.35
36×36 .0213 .541 .0065 .165 58.7 10.09
40×40 .0185 .470 .0065 .165 54.8 11.29
50×50 .0145 .368 .0055 .127 52.6 10.14
60×60 .0122 .310 .0045 .114 53.3 8.13
70×70 .0106 .269 .0037 .094 54.9 6.40
76×76 .0095 .241 .0037 .094 51.7 6.99
80×80 .0088 .224 .0037 .094 49.6 7.39
90×90 .0076 .193 .0035 .089 47.8 7.48
94×94 .0071 .180 .0035 .089 45.0 7.84
105×105 .0065 .165 .0030 .076 46.9 6.41
120×120 .0058 .147 .0025 .064 47.3 5.07
165×165 .0042 .107 .0019 .048 47.1 4.04
200×200 .0034 .0864 .0016 .0406 46.2 3.48
230×230 .0029 .0737 .0014 .0356 46.0 3.06
400×400 .0016 .0415 .0009 .022 35.1 2.90

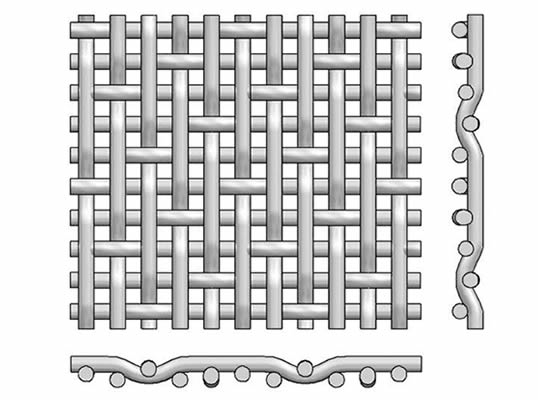

Stainless Steel Five-Heddle Weave Wire Mesh

Specifications of Stainless Steel Five Heddle Mesh
Mesh Wire Micron Retention Weight
Warp Weft Warp(mm) Weft(mm) Nom(um) Kg/m2
132 85 0.14 0.2 0.052 1.47
107 132 0.16 0.14 0.055 1.3
107 125 0.16 0.14 0.07 1.27
107 59 0.16 0.16 0.077 1.09
80 60 0.2 0.2 0.127 1.4
77 40 0.24 0.24 0.095 1.65
65 36 0.3 0.3 0.1 2.27
55 36 0.3 0.3 0.175 2.05
48 45 0.4 0.4 0.13 3.79
48 45 0.29 0.29 0.23 2
48 25 0.3 0.3 0.25 1.64
30 18 0.5 0.5 0.37 3
28 17 0.47 0.47 0.46 2.53
24 20 0.6 0.6 0.49 3.96
15 13 0.9 0.9 0.85 5.67
Specifications of Stainless Steel Five Heddle Mesh
Mesh Wire diameter Aperture
Wa Weft Warp(mm) Weft(mm) Warp(mm) Weft(mm)
108 59 0.16 0.16 0.075 0.271
110 60 0.16 0.16 0.071 0.263
38 38 0.15 0.15 0.518 0.518



Our Mission:

Customer: Oriented, Help Customers to save costs, Optimize supply chain and enrich product categories.

Quality Control:

(1) Huan Ya have a strict management of the raw material and good quality control for our stainless steel wire mesh products, and our quality assurance is ensured by using advanced and computerized testing machine and inspection equipment.

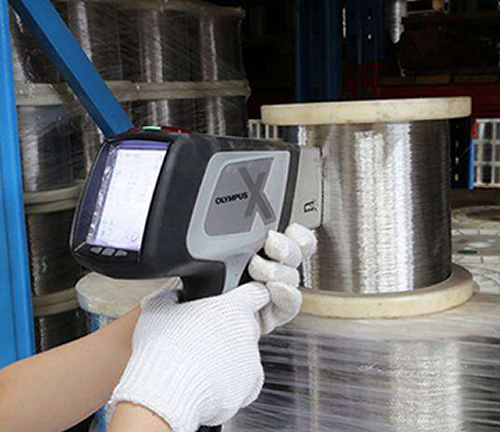

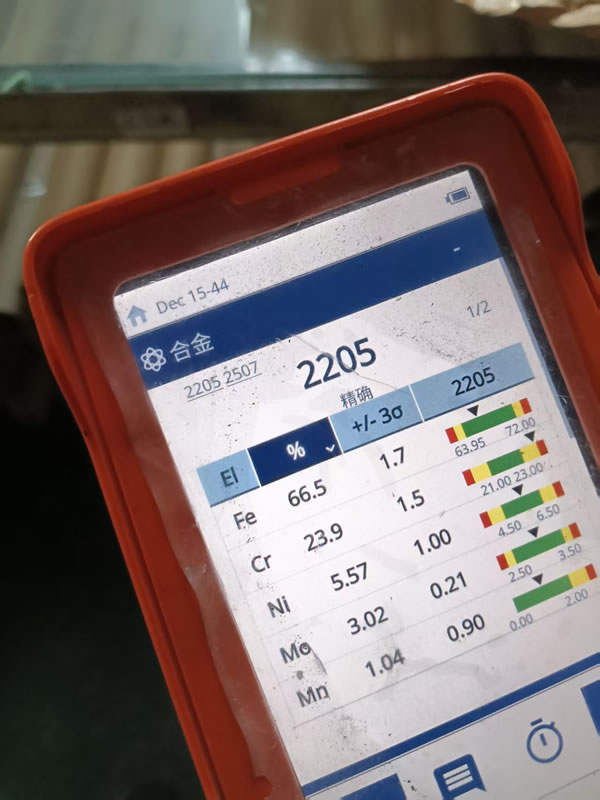

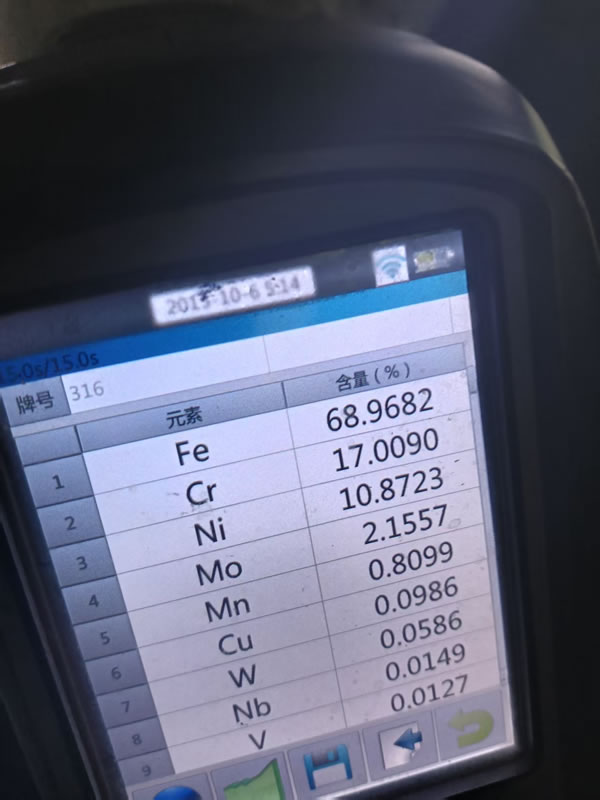

(2) Wire Acceptance Inspection: We will be test firstly when we received the raw material,and each spool have a detailed label and record which can provide a reliable traceability.

(3) Stock: We have enough stock of the commonly used materials.

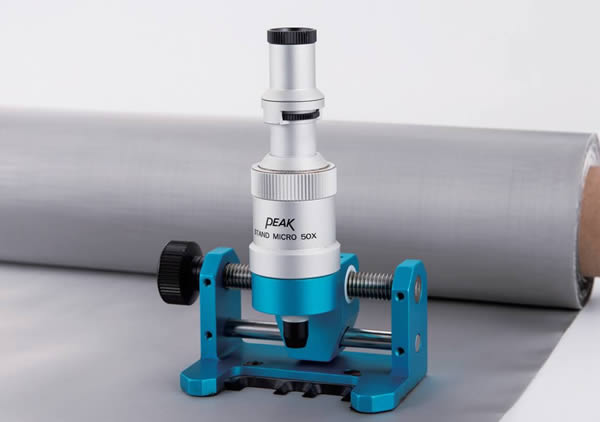

(4) Advanced Weaving looms and test equipment

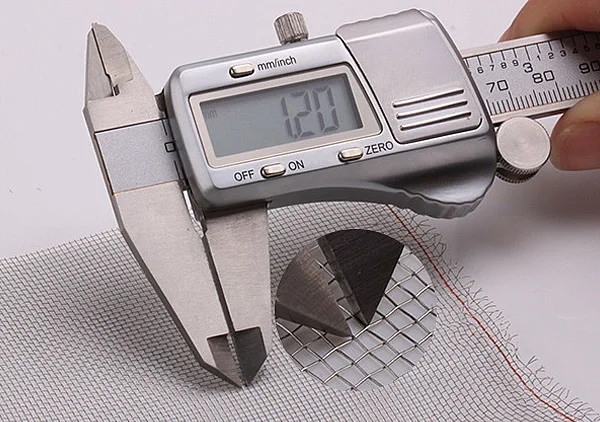

(5) Test weave and Inspection before weave

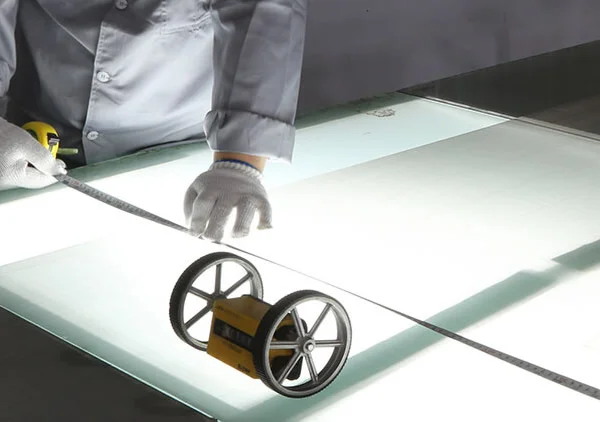

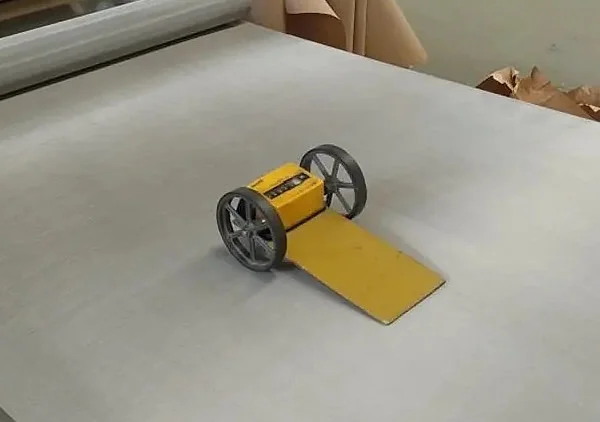

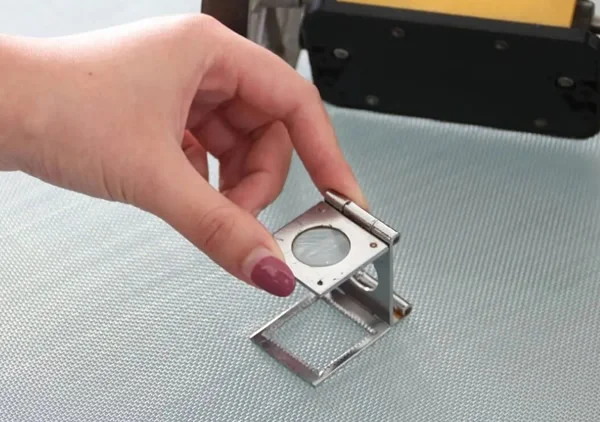

(6) Inspection after weaving
(7) Advanced finishing machine to Washing & Slitting & Crimping & Press Cutting&Welding
(8) Standard Export Package for international shipping

Advantages and Guarantees:

Choose Huan Ya Stainless Steel Wire Mesh, Stainless Steel Wire Cloth, Stainless Steel Filter Mesh and You will get:
Reliable Quality Assurance:

(1) Certified Raw material procurement
(2) There are professional inspectors for each production process
(3) Advanced production equipment
(4) All products undergo strict quality control and testing to ensure that every order delivered from our factory meets the highest standards
(5) Our professional team provide technical support and after-sales service and ensure that your use experience is worry-free.

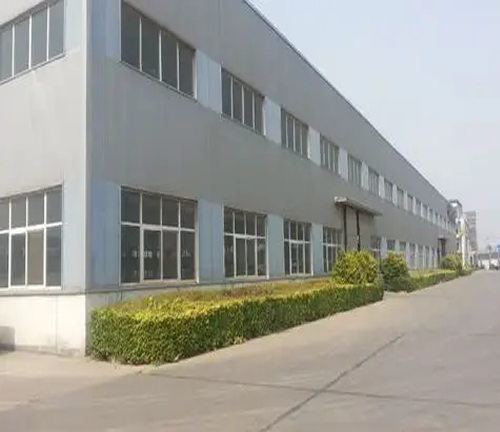

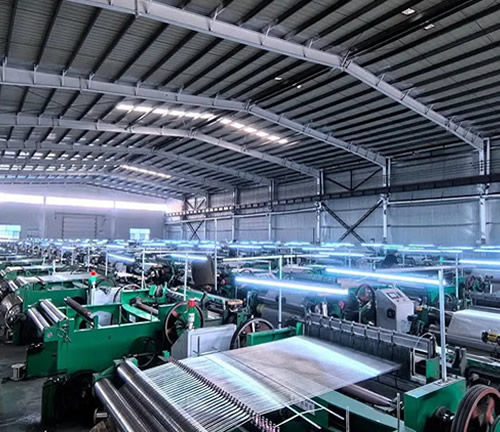

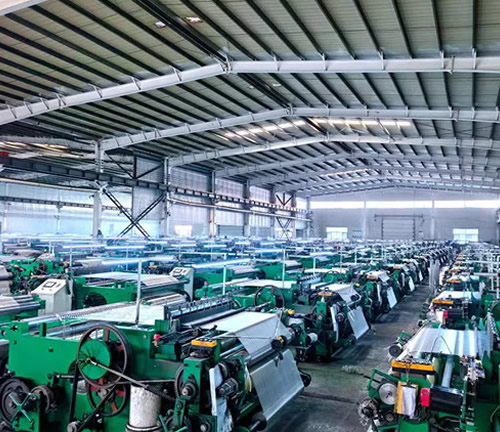

Factory

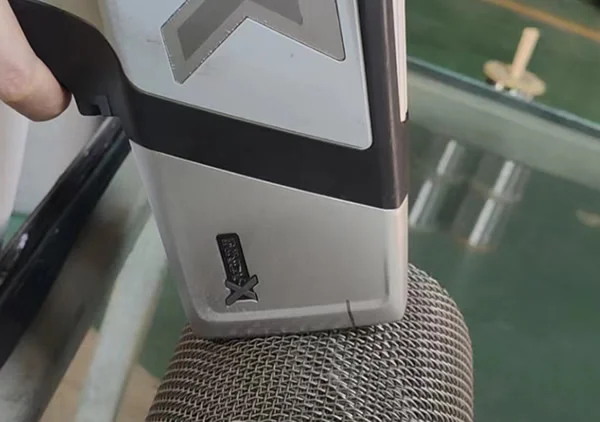

Raw Material Inspection

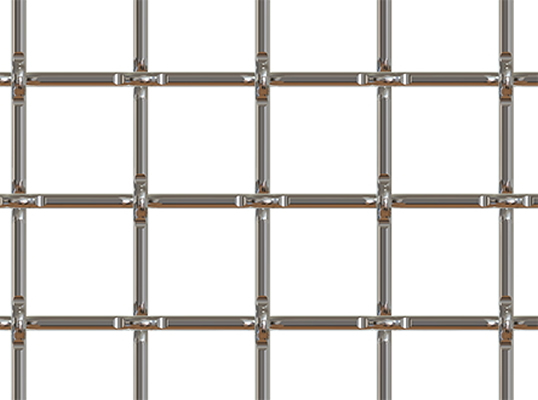

Stainless Steel Lock Crimp Weave Wire Mesh

Stainless Steel Intercrimp Weave Crimp Weave Wire Mesh

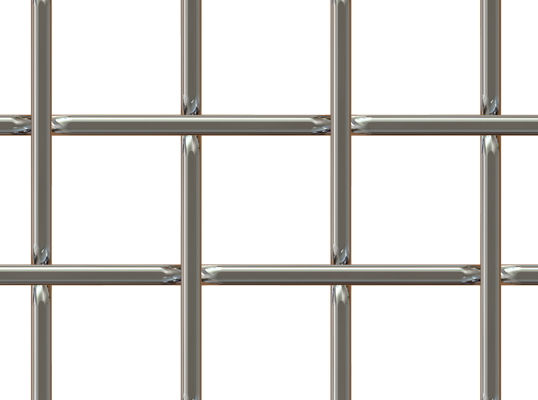

Stainless Steel Flat Top Crimp Weave Wire Mesh

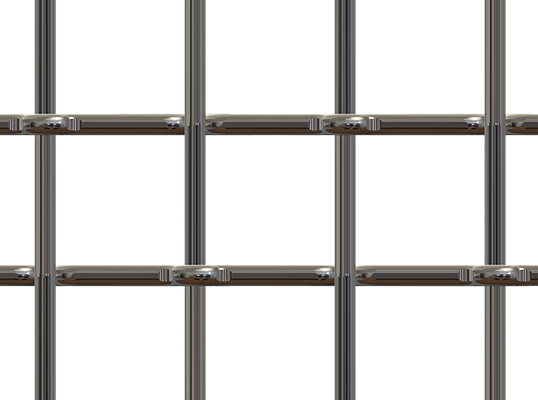

Stainless Steel Lock Crimp Plain Weave Wire Mesh


Stainless Steel Wire Mesh

Stainless Steel Wire Mesh


Stainless Steel Wire Mesh

Stainless Steel Wire Mesh

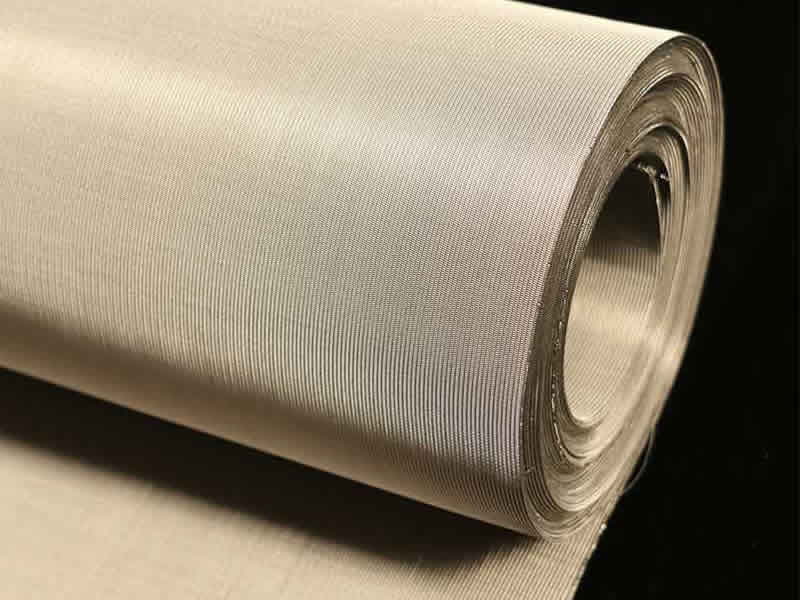

904L Stainless Steel Wire Mesh 24x110 Mesh

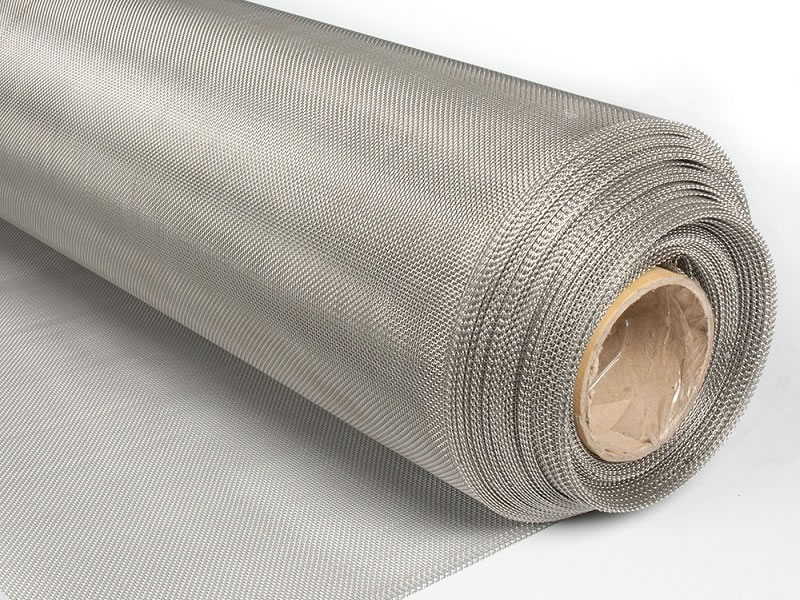

Duplex Stainless Steel Mesh (UNS S31803)

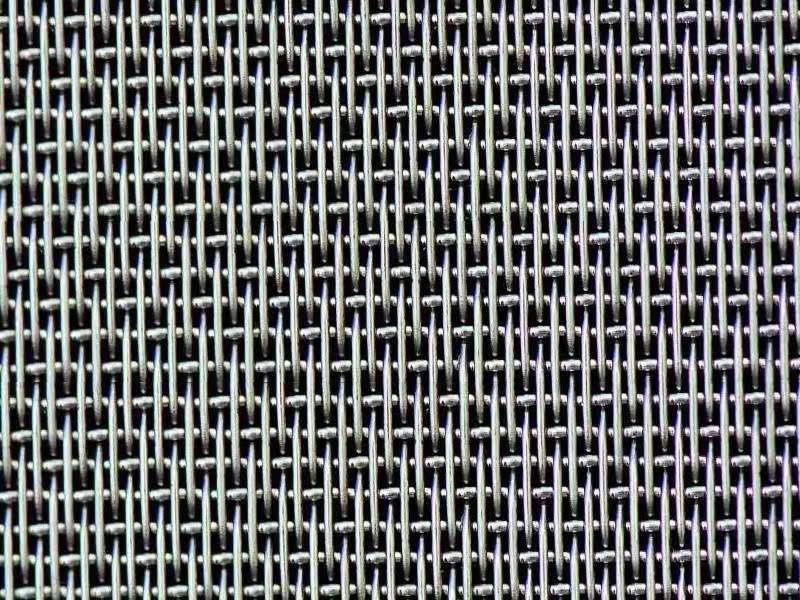

Stainless Steel Five-Heddle Weave Wire Mesh

Stainless Steel Five-Heddle Weave Wire Mesh

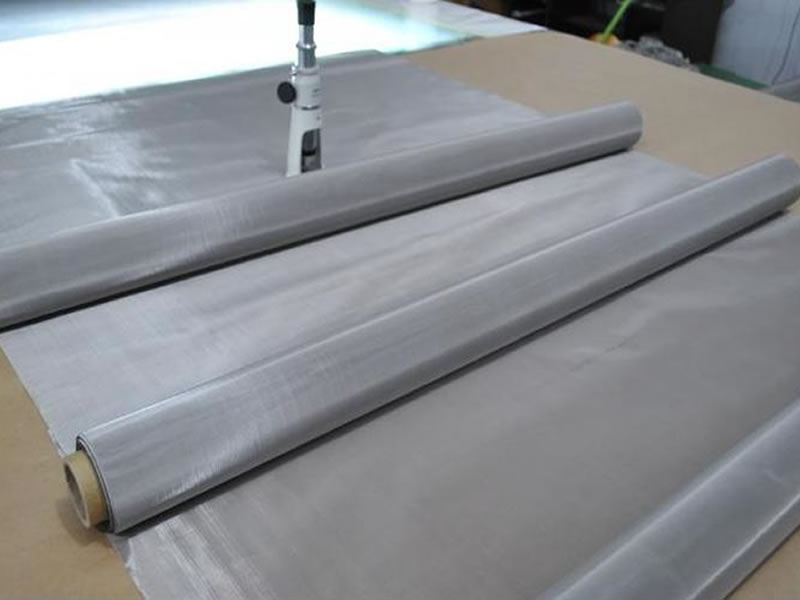

Magnetic 430 Stainless Steel Wire Mesh

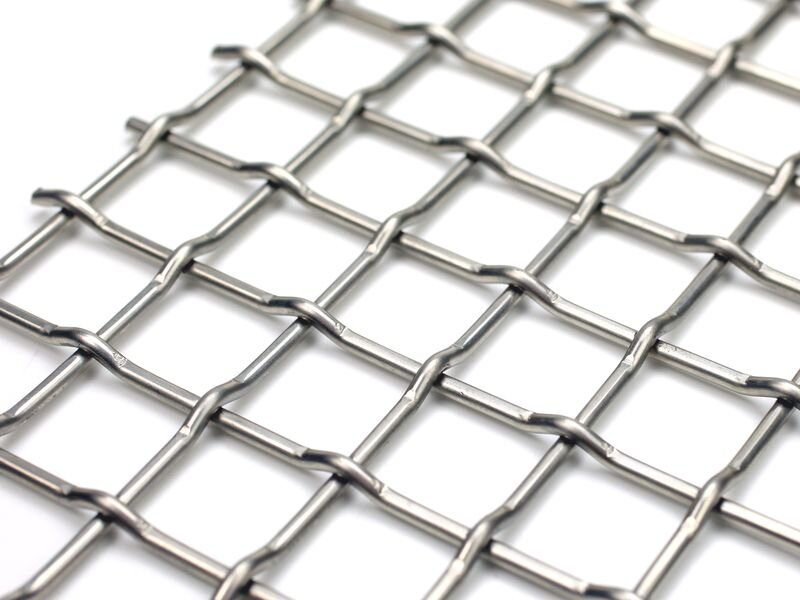

Stainless Steel Crimped Weave Wire Mesh

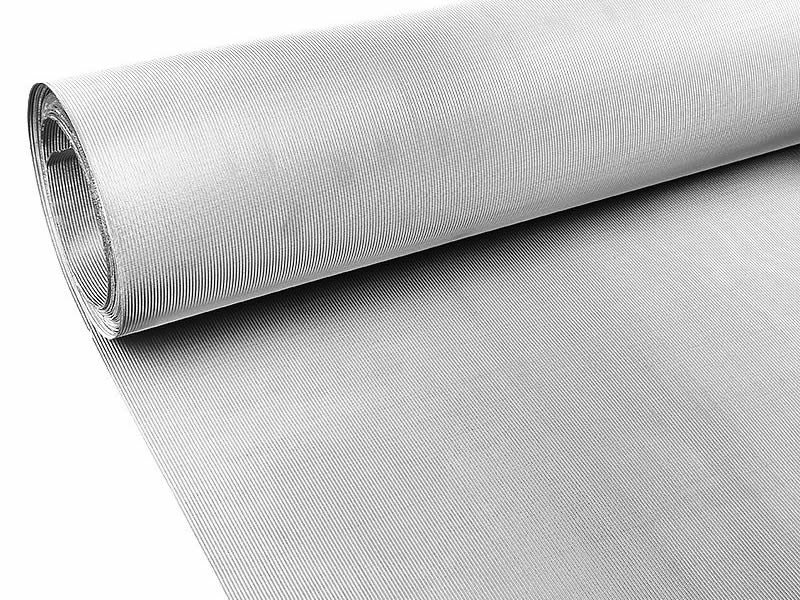

Stainless Steel Dutch Weave Wire Mesh

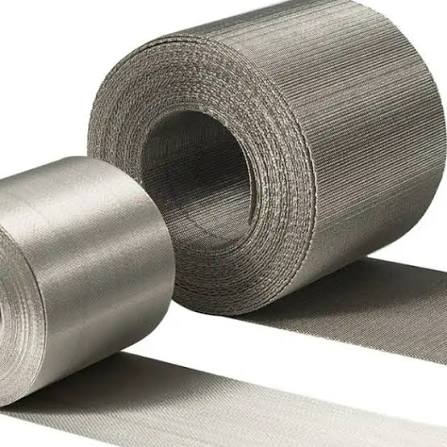

Stainless Steel Reverse Dutch Weave Wire Mesh


Stainless Steel Twill Weave Wire Mesh

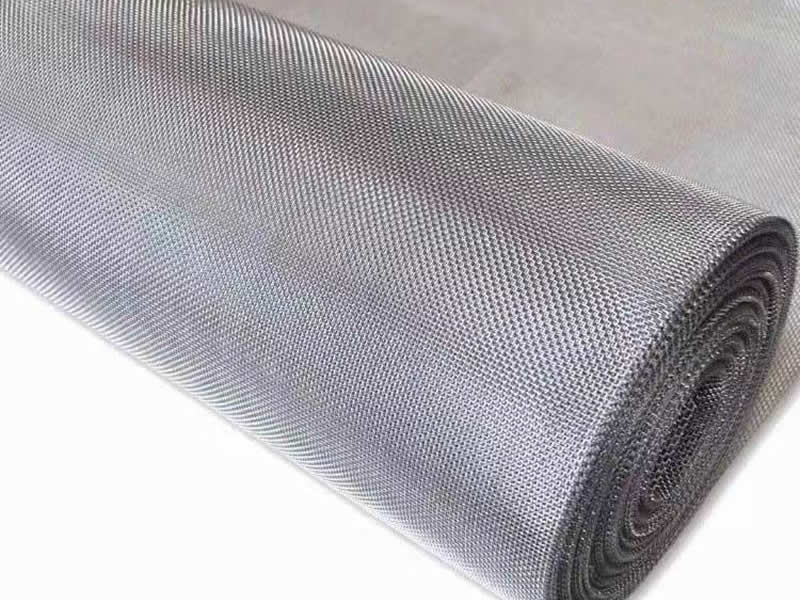

Super Duplex Stainless Steel Mesh (UNS S32750)

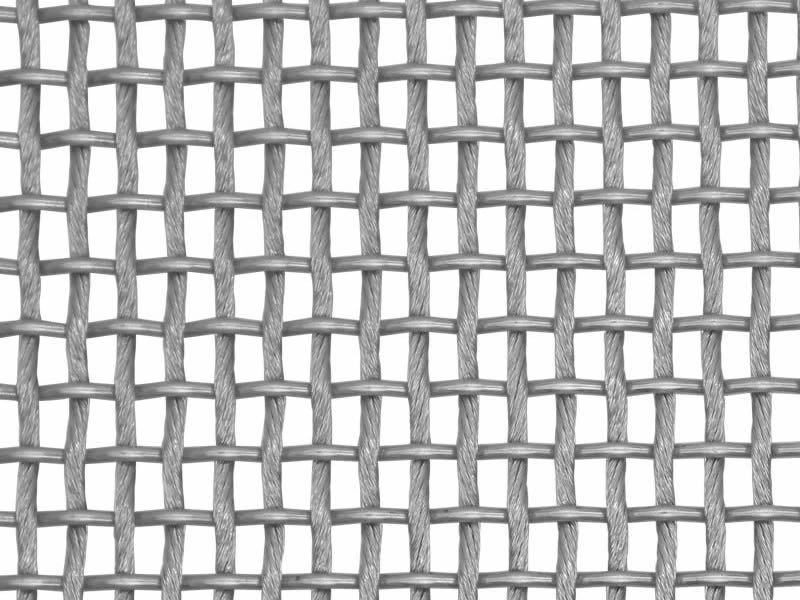

Stainless Steel Cable-Rod Woven Wire Mesh

Stainless Steel Cable-Rod Woven Wire Mesh
