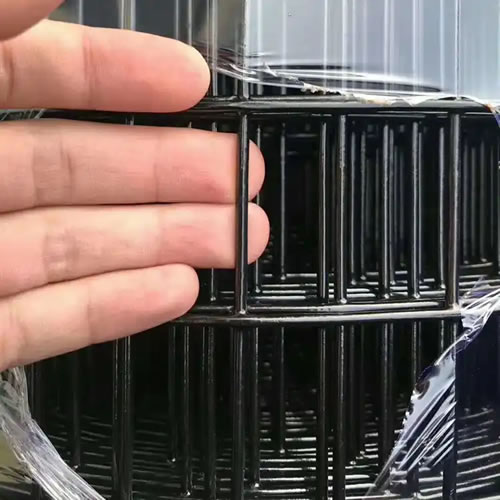

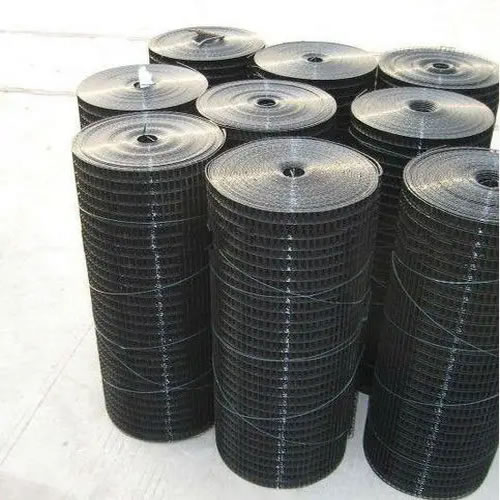

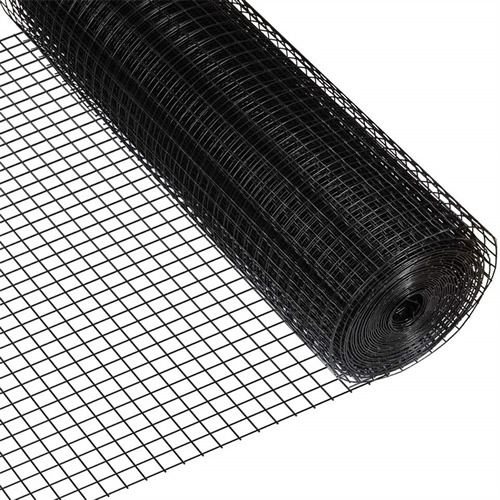

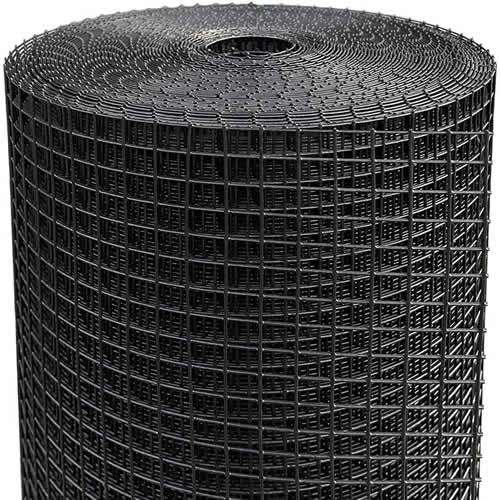

BLACK PVC COATED WELDED WIRE MESH ROLL

We manufacture and supply a large range of high quality black PVC coated welded wire mesh rolls. From heavier duty thick wire mesh ideal for security fencing and post and rail fencing systems, to our lighter weight black PVC meshes that can be used for fencing applications and pet hutches.

Black PVC coated weld mesh rolls are manufactured from galvanised wire, that is welded to form the mesh aperture and coated in the black PVC plastic coating to produce a high quality mesh suitable for long-term fencing applications.

Our heavier meshes are manufactured from 3.00mm/2.5mm wire and 2.4mm/2.0mm wire with meshes apertures of 50mmx50mm (2x2").  Our medium weight meshes are manufactured from 2.0mm/1.6mm wire with mesh apertures of 25mmx25mm (1"x1") and 50mmx50mm (2"x2") and our lighter weight meshes are manufactured from 1.4mm/1mm wire with mesh apertures of 25mmx25mm (1"x1"), 13mmx25mm (1/2"x1") and 13mmx13mm (1/2" x 1/2")​​. ​​

Black PVC coated to RAL 9005. The welded wire mesh is galvanised before coating. The black PVC coating provides an attractive finish that blends in with the environment and provides additional corrosion resistance.

TYPICAL APPLICATIONS:

• Security Fencing
• Border Fencing
• Garden Fencing
• Post& Rail Fencing
• Hutches
• Tree Guard Mesh
• Tree Protection

Mesh Aperture:

• 1/2"x1/2"  12.7mmx12.7mm
• 1" x 1" 25.4mm x 25.4mm
• 1/2" x 1" 12.7mm x 25.4mm
• 2"x1"   50.8mmx50.8mm
• 2" x 2"  50.8mm x 50.8mm

Roll Heights / Widths:
600, 900mm, 1200mm & 1500mm. 1800mm (3ft, 4ft, 5ft & 6ft)

Wire Thicknesses:
1.4/1mm, 2/1.6mm, 2.4/2.0mm and 3.0/2.5mm

PVC WELD MESH (HEAVY)

Roll Size	Mesh Aperture	Wire Thickness
0.6M x 25M	50mm x 50mm	3/2.5mm
0.9M x 25M (& 12.5M)	50mm x 50mm	3/2.5mm
1.2M x 25M (& 12.5M)	50mm x 50mm	3/2.5mm
1.5M x 25M	50mm x 50mm	3/2.5mm
1.8M x 25M (& 12.5M)	50mm x 50mm	3/2.5mm
0.9M x 25M	50mm x 50mm	2.4/2.0mm
1.2M x 25M	50mm x 50mm	2.4/2.0mm



Roll Size	Mesh Aperture	Wire Thickness
0.9M x 25M	12x12mm (1/2" x 1/2")	1.4/1mm
0.9M x 25M	25mmx25mm (1" x 1")	1.4/1mm
0.9M x 30M	25mmx25mm (1" x 1")	2.0/1.6mm

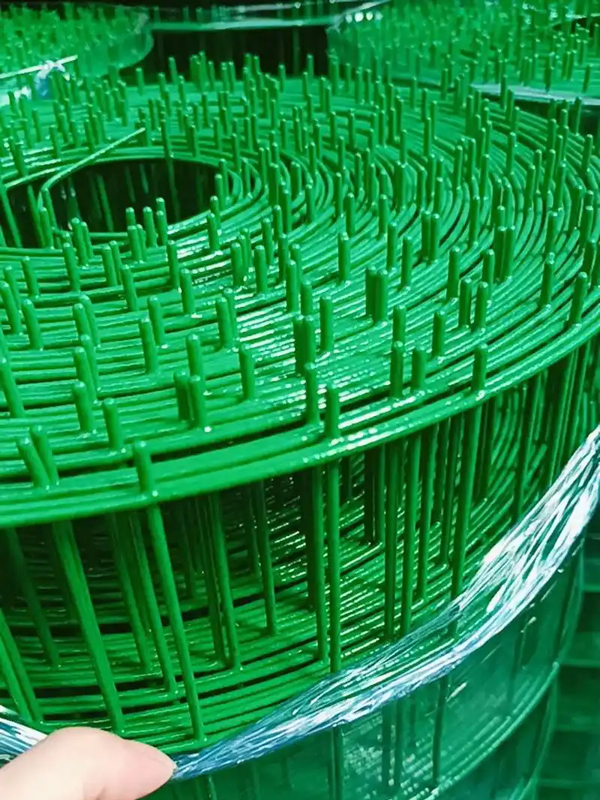

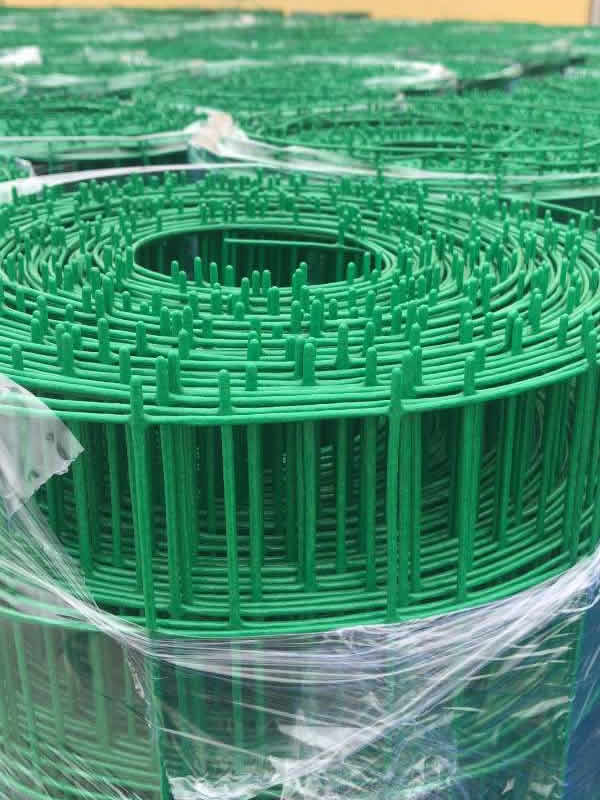

GREEN PVC COATED WELDED MESH ROLLS

A range of high quality green PVC coated welded wire mesh rolls. The mesh is manufactured from galvanised wire and coated in the green plastic coating to produce a high quality mesh suitable for long-term fencing applications.

An Ping Huan Ya Wire Mesh Products Co.,ltd supply lightweight and heavy weight PVC meshes that are used for many fencing applications. Our heavy grade meshes are ideal for security fencing and post and rail systems. These meshes are supplied with a 50mm x 50mm aperture and manufactured from 2.8mm and 2.3mm diameter galvanised wire (3.3mm & 2.8mm when coated). Usually supplied on 25mtr rolls.

The medium-weight meshes are suitable for garden fencing are made from 1.6mm wire and coated to a diameter of 2mm and are supplied in 3ft and 4ft heights with mesh apertures of 25mm x 25mm and 50mm x 50mm.

Our lightweight meshes are made from a 1mm thick wire (19G) and coated to 1.4mm to produce an attractive mesh ideal for lightweight fencing, hutches and garden applications. Available in 3ft roll heights and in 30m and 6m rolls. Mesh apertures include 1" x 1", 1/2" x 1" and 1/2" x 1/2" (25x25mm, 13x25mm & 13x13mm).

Our Eurofence / Border Fencing is a great value fencing product ideal for the domestic / DIY market where an attractive and cost effective mesh fencing is required. Eurofence Plus has a crimped design and a mesh aperture of 50mm x 100mm with a wire thickness of 2.2mm/1.7mm.

TYPICAL APPLICATIONS

• Security fencing
• Border fencing
• Garden fencing
• Post & Rail Fencing
• Hutches
• Tree Guard Mesh
• Tree Protection

PVC COATING

Green PVC coated to RAL 6005. The welded wire mesh is galvanised before coating.

The PVC coating provides an attractive finish the blend in with the environment and provides additional corrosion resistance.​

Mesh Aperture:

• 1/2" x 1/2 " / 12mm x 12mm
• 1" x 1" 25mm x 25mm
• 1/2" x 1" 12mm x 25mm
• 2" x 2" / 50mm x 50mm

Roll Heights / Widths:
600, 900mm, 1200mm & 1500mm. 1800mm & 2400mm (3ft, 4ft, 5ft, 6ft & 8ft)

Wire Thicknesses:
1.4/1mm, 2/1.6mm, 2.8/2.3mm and 3.3/2.8mm



PVC WELD MESH (HEAVY)

Roll Size	Mesh Aperture	Wire Thickness
0.6m x 25M	50mm x 50mm (2" x 2")	2.8mm/2.3mm
0.9m x 25M (& 12.5M)	50mm x 50mm (2" x 2")	2.8mm/2.3mm
0.9m x 25M (& 12.5M)5M)	50mm x 50mm (2" x 2")	2.8mm/2.3mm
1.5m x 25M	50mm x 50mm (2" x 2")	2.8mm/2.3mm
1.8m x 25M (& 12.5M)	50mm x 50mm (2" x 2")	2.8mm/2.3mm
0.9M x 25M	50mm x 50mm (2" x 2")	3.3mm/2.8mm
1.2M x 25M	50mm x 50mm (2" x 2")	3.3mm/2.8mm



PVC WELD MESH (LIGHT/MED)

Roll Size	Mesh Aperture	Wire Thickness
0.9m X 30M (& 6MTR)	25mm x 25mm (1" x 1")	1.4mm/1mm (17G/19G)
0.9m X 30M (& 6MTR)	12mm x 25mm (1/2" x 1")	1.4mm/1mm (17G/19G)
0.9m X 30M (& 6MTR)	12mm x 12mm (1/2" x 1/2")	1.4mm/1mm (17G/19G)
0.9M x 30M	50mm x 50mm (2" x 2")	2mm/1.6mm (14/16G)
1.2M X 30M	50mm x 50mm (2" x 2")	2mm/1.6mm (14/16G)
0.9M x 30M	25mm x 25mm (1" x 1")	2mm/1.6mm (14/16G)
1.2M X 30M	25mm x 25mm (1" x 1")	2mm/1.6mm (14/16G)

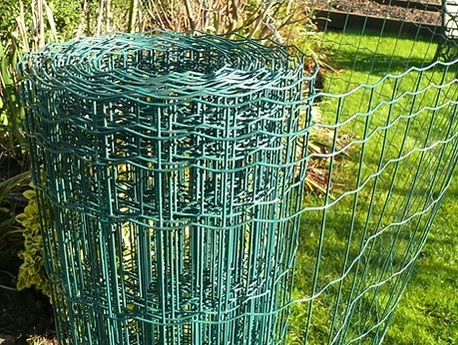

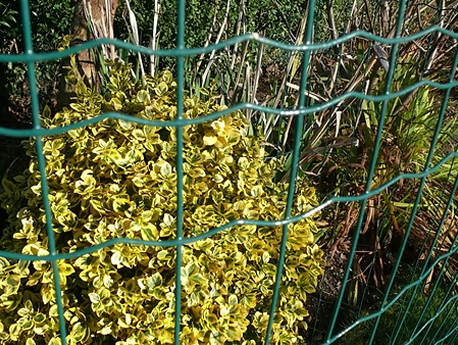

Our border fencing mesh (also known as Eurofence Plus) is a great value welded wire mesh. The product has a 50mm x 100mm mesh aperture and is made from 2.2mm / 1.7mm galvanised wire. Coated to Green PVC RAL 6005, Eurofence is ideal for garden fencing, dog runs and boundary marking.  Supplied in roll heights of 60cm, 1m, 1.2m, 1.5m and 1.8m. The majority of of our range is available in 10mtr and 25mtr roll lengths.​

Also available in black PVC coated and Grey.



Roll Size	Mesh Aperture	Wire Thickness
0.6M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
0.8M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1M X 10M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1.2M X 10M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1.2M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1.5M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1.8M X 10M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
1.8M X 25M	50mm x 100mm (2" X 4")	2.2mm / 1.7mm
